Features

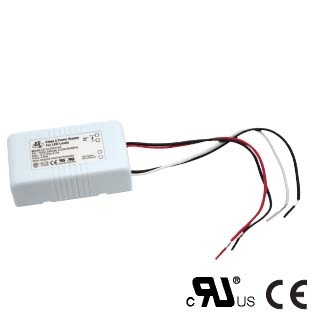

Item :CC9W LED Driver (Class 2 power supply for LED loads)
Wattage: 9W (max)
Input: 100-240V, 50/60Hz
Output: 3-34VDC/700mA
Voltage: Series Wiring, constant current 700mA (max)
Rating: CE & RU Listed, with short circuit & overload protected

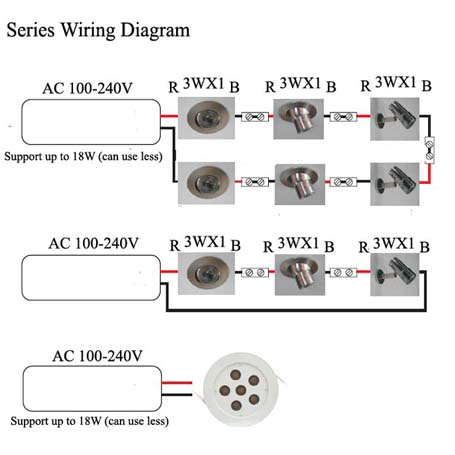

Wiring Diagram: Double click to zoom or enlarge the diagram
NOTE: (i)DO NOT connect the constant current power supply (Driver) to the power supply from the junction-box
or outlet before all fixtures are connected.
NOTE: (ii)When wiring LED fixtures, they must be wired in series wiring and NOT parallel wiring.
Compatible LED Display Lights
LED Cabinet Recess Display Light DL-3WS35
LED Display Spot Light DL-3WS36
LED Display Spot Light SL-3WS47W
LED Display Spot Light(Retractable Pole) DL-3WS47
LED Spot Light DLEU-9W425
LED Spot Light DLEU-9W415
LED Down Light DLEU-18W102
Dimension:
5 1/2" x 1 3/4" x 1"
